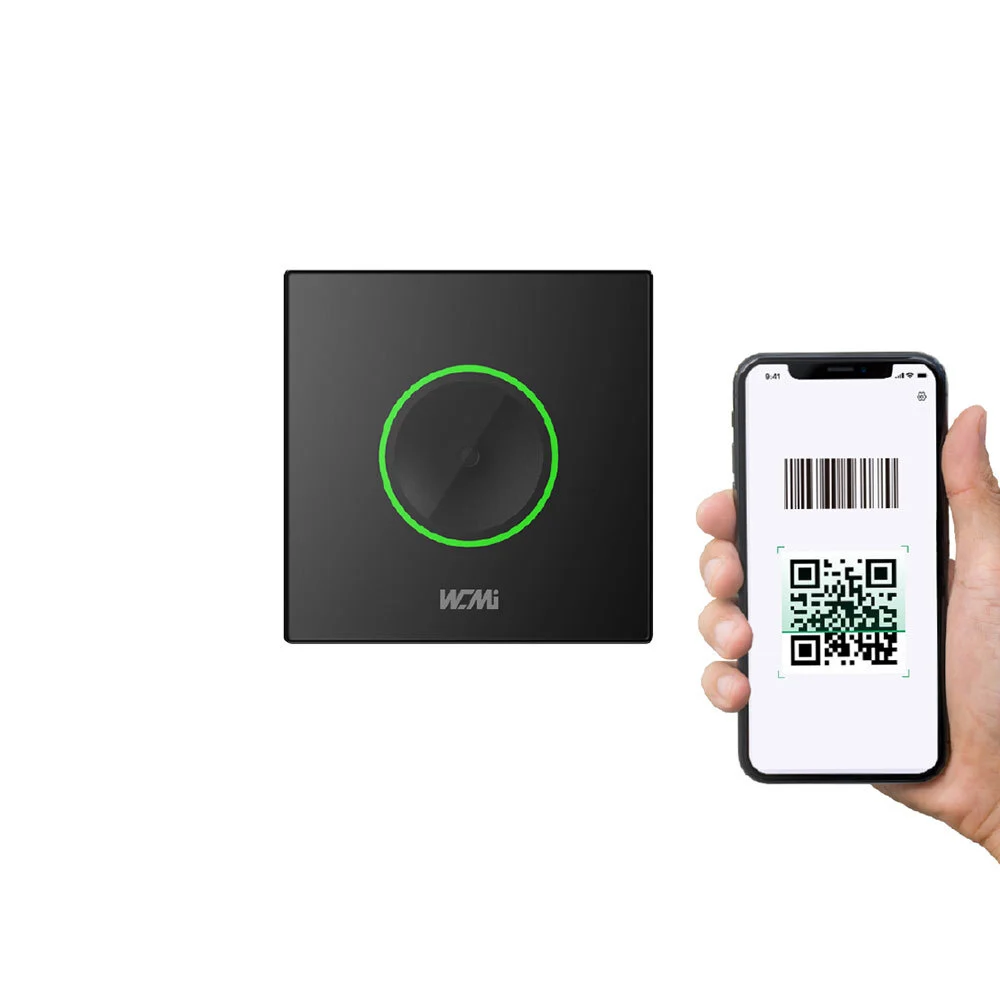

WCMI Ultrathin QR Code Door NFC Card Wiegand RS485 Barcode Access Control for Restaurants AC8130
Model: AC8130
Size: 86mm * 86mm * 26mm
Color: black+grey
Material Science: Aluminium alloy + Tempered glass
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Wired Handheld barcode scanner-SD5230
Product description
● Manual mode, continuous mode, induction mode, command trigger mode.
● Barcode minimum precisions-4mil.
● Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.
● Can withstand a drop of 1.2m and work well in dark environment.
● Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.
Ultimate cost performance ratio
Advanced the 4th generation I-SUBPIXEL algorithm, easy and high-speed reading of various barcodes.
Product parameters
| Model | AC8130 | |
| Scan CodePerformance | Sensor | 640 X 480 CMOS@30fps |
| View Angle | Horizontal 63°, Vertical 51° | |
| DecodingCapability | Default Open: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix | |
| Default Cloth: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey、RSS-14、RSS-Limited、RSS-Expanded | ||
| Read Distance | 30 ~ 230mm（6-inch mobile phone, wechat QR payment code） | |
| Scan Angle | Rotation: 360°, Pitch: ±60°, Deflection: ±50° | |
| Scan Mode | Active/Passive, Support induction mode | |
| Precisions | 1D ≥ 5mil / 2D ≥ 10mil | |
| Symbol Contrast | ≥ 25% | |
| Scan Card Support | ISO14443A / B, Mifare card | |
| Scan Code Feedback | Buzzer; The green light indicates code scanning | |
| PhysicalParameters | Weight | 130g |
| Dimensions | 86mm * 86mm * 26mm | |
| Material | Aluminium alloy + Tempered glass | |
| Interface | Wiegand, RS232, RS485, USB | |
| Prompt Mode | LED prompt, Buzzer | |
| Voltage | DC 12V (5V-24V) | |
| Current | <160mA 12V | |
| Environmental Parameter | Environmental light | 0-80000Lux |
| IP Protection | Front IP54 | |
