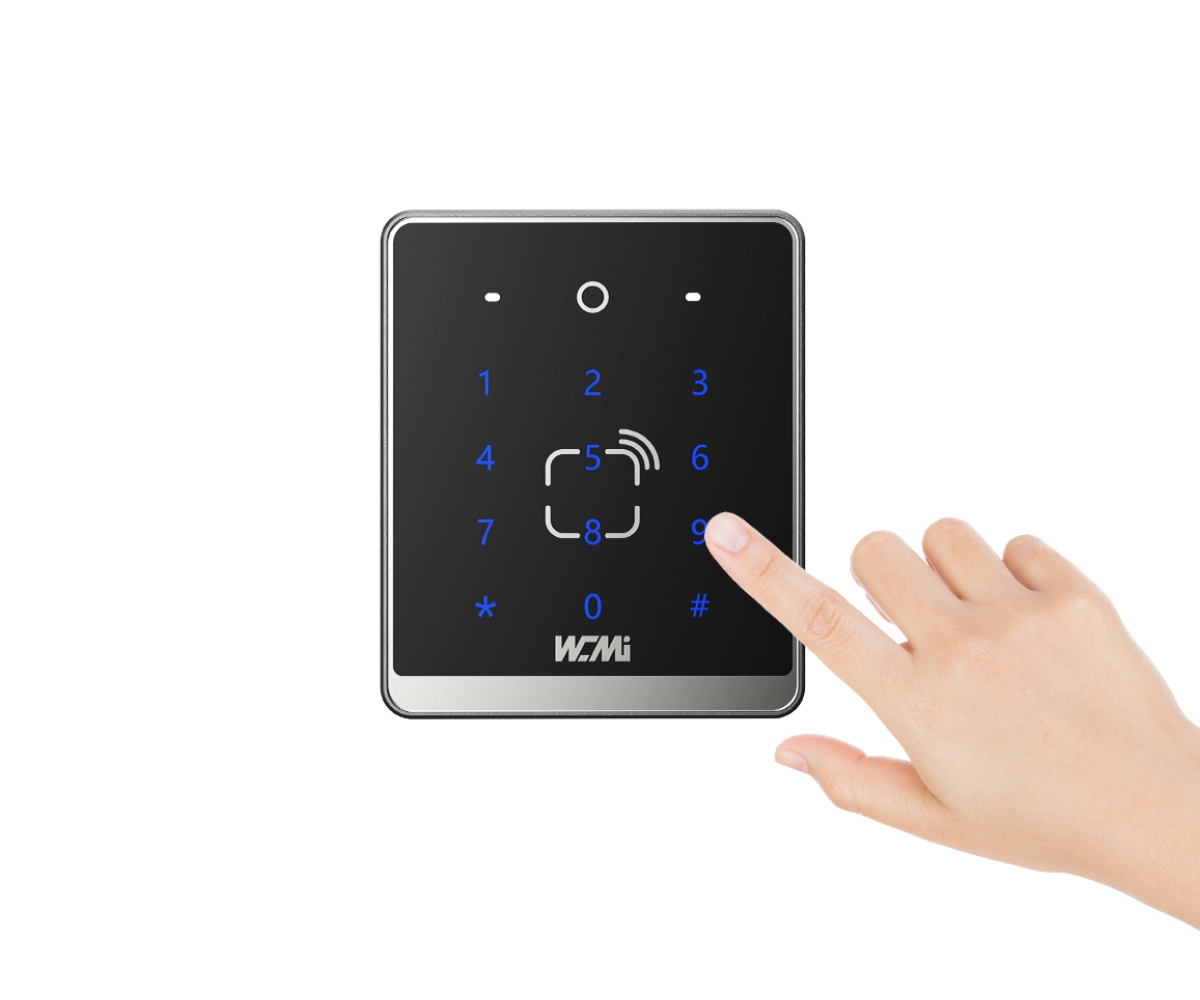

WCMI QR Code Keypad Door Access Control Wiegand RS232 RS485 OEM&ODM
Model: AC8632
Size: 86mm * 103mm * 20mm
Color: black
Material Science: PC+Tempered glass
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Access Control - AC8632
Product description
● Flexible, option relay, support alarm input door open input signal.
● The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers, efficient and sensitive, high decoding capability.
● Wall-mounted slim desigh for easy installation.
● Support customized software according to customer's requirements.
● Various interface is available wiegand, RS232, RS485, Ethernet.
● Uniform lighting design, comfortable visual experience.
● Suitable for such as control wing gate, apartmen, control of the elevator, commuity, office, club, factory, school and so on.
Product parameters
| Model | AC8632 | AC8633 | |
| Scan Code Performance |
Sensor | 640 X 480 CMOS@30fps | |
| View Angle | Horizontal 63°, Vertical 51° | ||
| Decoding Capability |
Default Open: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, QR Code, PDF417, DataMatrix | ||
| Default Cloth: Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey , RSS-14, RSS-Limited, RSS-Expanded | |||
| Read Distance | 30 ~ 230mm(6-inch mobile phone, wechat QR payment code) | ||
| Scan Angle | Rotation: 360°, Pitch: ±60°, Deflection: ±50° | ||
| Scan Mode | Active / Passive, Support induction mode | ||
| Precisions | 1D ≥ 5mil / 2D ≥ 10mil | ||
| Symbol Contrast | ≥ 25% | ||
| Scan Card Support | ISO14443A/B, Mifare card | ||
| Scan Code Feedback | Buzzer; The green light indicates code scanning | ||
| Physical Parameters |
Weight | 130g | |
| Dimensions | 86mm * 103mm * 20mm | ||
| Material | PC+Tempered glass | ||
| Interface | Wiegand, RS232, RS485 | Ethernet | |
| Prompt Mode | LED prompt, Buzzer | ||
| Voltage | DC 12V (5V-30V) | ||
| Current | < 160mA 12V | ||
| Environmental light | 0-80000Lux | ||
| IP Protection | Front IP54 | ||
Product details
● Professional feedback within 8 hour
● Full capabilities to rely on
● Best possible prices for you
● Fast prototype in 1 week
● Fast delivery in 35-40 days
