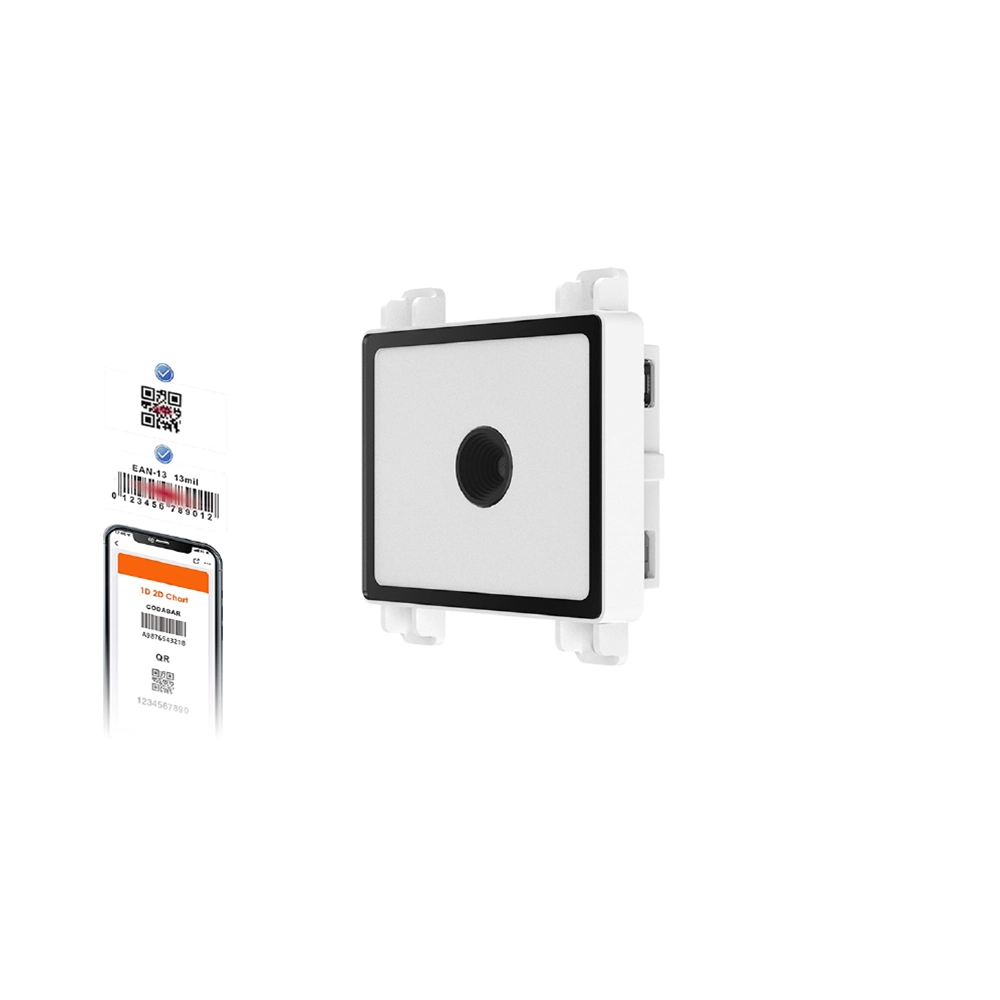

MCMI High-Speed 2D CMOS Embedded Barcode Scanner Module TTL USB for paymen terminal OEM
Model:EM1430
Size: 65.1mm * 60.6mm * 20.5mm
Color: white
Material Science: ABS
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Wired Handheld barcode scanner-EM1431
Product description
● The 4th genneration I-SUBPIXEL algorithm easily and quickly scan various barcodes.
● High motion tolerance, easy to read with fast movements.
● White LED illumination, easily read paper barcodes.
● Variour Interfaces: USB VCP / USB HID-KBW / USB HID-POS /TTL-232 .
● Applicable to face paymen terminal, smart homes, lockers, self-service inquirt terminal, queying, calling equipmentand and other intelligent scenarios.
● Support Linux, Android, Windows and other systems.
Product parameters
| Model | EM1430 | |
| Scan Code Performance |
Sensor | 640 x 480 CMOS@60fps |
| Light Source | White fill light | |
| View Angle | Horizontal 70°, Vertical 55° | |
| Decoding Capability |
2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、Micro PDF417 | |
| 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5 、 Plessey 、 China Post 、 GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) | ||
| Depth of Field | EAN-13: 15 ~ 130mm（13mil） Code128: 15 ~ 210mm（15mil） OR: 5 ~ 200mm (15mil) |
|
| Scan Angle | Rotation: 360°, Pitch: ± 60°, Deflection: ±60° | |
| Precisions | 1D ≥5mil / 2D ≥9mil | |
| Symbol Contrast | ≥ 25% | |
| Motion Tolerance | ≥ 50cm/s (Payment code) | |
| Physical Parameters |
Weight | < 30g |
| Dimensions | 65.1mm * 60.6mm * 20.5mm | |
| Interface | USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232、 RS232 (Choose one of two) |
|
| Voltage | DC +3.3V ~ +5V (±5%) (optional: +5V ~ +30V (±5%)) | |
| Current | 160mA@5V supply power | |
| Environmental Parameter |
Shock | 5~200Hz, 10Grms, 3axes, 1.5Hr |
| ESD Protection | Contact Discharge ±6KV / Air Discharge ±12KV | |
| Other | Optional model | EM1430-K/2/K2 K stands for operating voltage: DC +3.3V~+30V; 2 representatives support RS232 interface |
