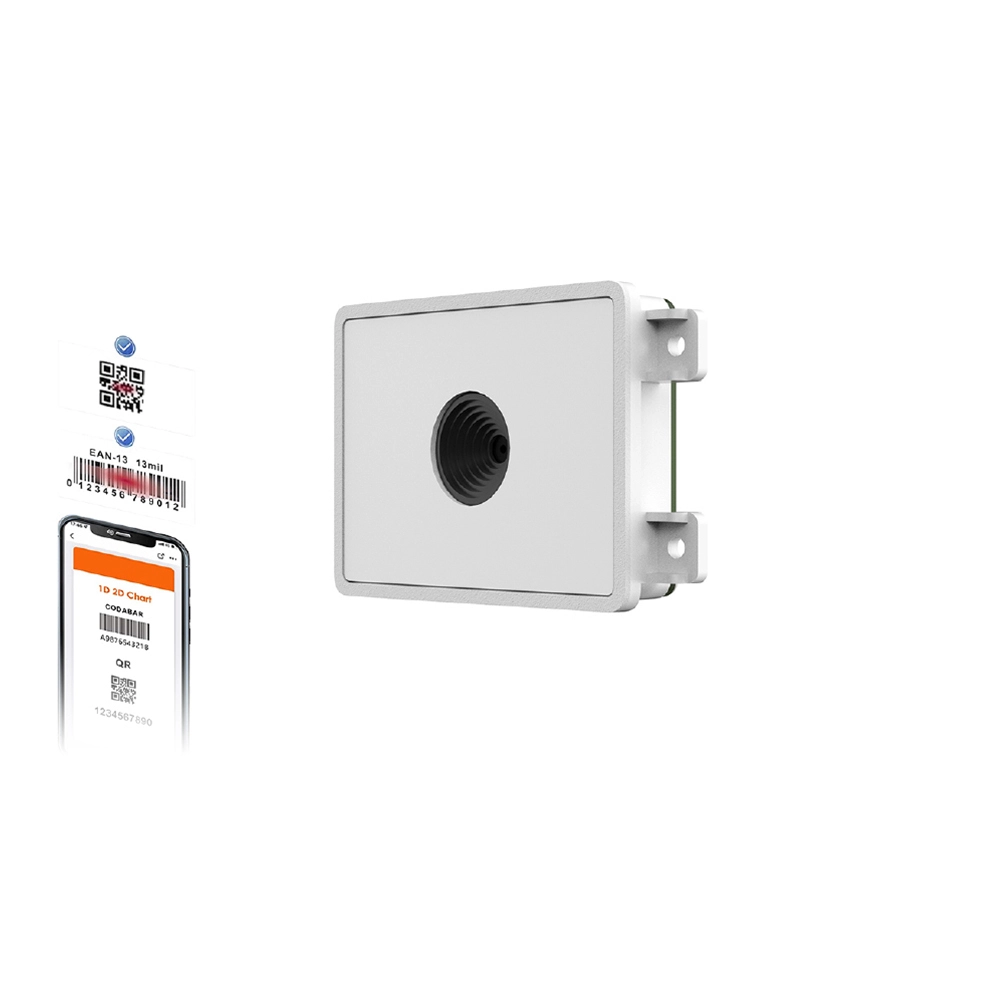

MCMI Embedded 2d scan engine Barcode Scanner Module USB TTL for payment terminal EM1732
Model: EM1732
Size: 55.1mmL * 32.9mmW * 11.9mmH
Color: white
Material Science: PC+ABC
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Product description
● Large scanning window, ultra-thin design.
● Easy to read screen codes and paper bar codes.
● The motion tolerance is as high as 0.8m/s.
● Wide voltage design (DC 3.3V~5V).
● Applicable to payment terminal, e-commerce self-service cabinet, smart home, locker, self-service
query terminal, queue number calling deviceand other intelligent scenarios.
● Supports Linux, Android, and Windows.
Product parameters
|
Model |
EM1732 |
|
|
Scan Code Performance |
Sensor |
640 x 480 CMOS@30fps |
|
Light Source |
White 6500K LED |
|
|
View Angle |
Horizontal 74°, Vertical 58° |
|
|
Decoding Capability |
2D: QR、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、Micro PDF417、Code 16K |
|
|
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、GS1 Databar(RSS-Expand, RSS-Limited, RSS-14) |
||
|
Depth of Field |
Wechat payment code: 12 ~ 200mm Refund code: 40 ~ 65mm |
|
|
Scan Angle |
Rotation: 360°, Pitch: ± 60°, Deflection: ±60° |
|
|
Precisions |
1D ≥5mil / 2D ≥10mil |
|
|
Symbol Contrast |
≥ 25% |
|
|
Motion Tolerance |
≥ 80cm/s (Payment code) |
|
|
Physical Parameters |
Weight |
< 15g |
|
Dimensions |
55.1mmL * 32.9mmW * 11.9mmH |
|
|
Interface |
USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 |
|
|
Voltage |
DC +3.3V~5V (±5%) |
|
|
Current |
140mA@5V supply power |
|
|
Environmental Parameter |
Shock |
5~200Hz, 10Grms, 3axes, 1.5Hr |
|
ESD Protection |
Contact Discharge ±6KV / Air Discharge ±12KV |
|
