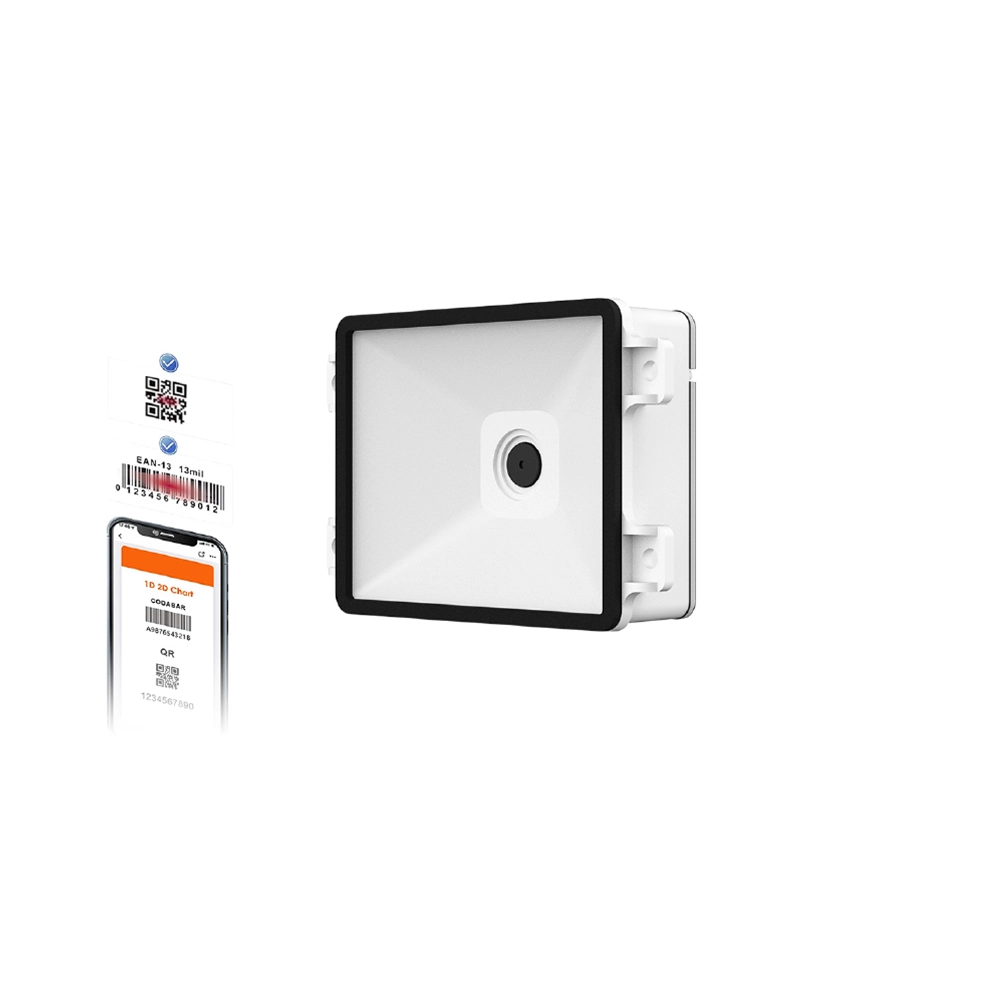

WCMI Embedded Barcode Scanner Module Barcode Scan Engine OEM TTL232 USB Forstorage Cabinet EM1730
Model: EM1730
Size: 53.5mm * 36mm *16mm
Color: white
Material Science: PC+ABC
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Product description
● Excellent scanning performance, ultra-thin design wide field of view.
● The 4th generation I-SUBPIXEL algorithm easily and quickly scan various barcodes.
● High Motion tolerance, easy to read with fast movements.
● White led illumination, easy read paper barcodes.
● Various Interfaces: USB VCP, USB HID-KBW, USB HID-POS, TTL232.
● Suitable for smart scenarios such as face paymen terminal, smart homes, lockers, self-service inquirt terminal, queying and calling equipmentand so on.
Support Linux, Android, Windows and other systems.
Product parameters
|
Model |
EM1730 |
|
|
Scan Code Performance |
Sensor |
640 x 480 CMOS |
|
Light Source |
White LED (6500k) |
|
|
View Angle |
Horizontal 74°, Vertical 58° |
|
|
Decoding Capability |
2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、Micro PDF417、Code 16K、Code 49 |
|
|
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) |
||
|
Depth of Field |
Wechat payment code: 12 ~ 200mm Refund code: 40 ~ 65mm |
|
|
Scan Angle |
Rotation: 360°, Pitch: ±60°, Deflection: ±60° |
|
|
Scan Mode |
Continuous mode, Induction mode, Manual mode, Command triggered mode |
|
|
Precisions |
1D ≥ 5mil / 2D ≥ 10mil |
|
|
Symbol Contrast |
≥ 25% |
|
|
Motion Tolerance |
≥ 80cm/s (Payment code) |
|
|
Physical Parameters |
Weight |
15g |
|
Dimensions |
53.5mm * 36mm *16mm |
|
|
Interface |
USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 |
|
|
Prompt Mode |
LED prompt and buzzer (Provide external interface) Built-in buzzer: optional |
|
|
Voltage |
DC +3.3V ~ +5V (±5%) |
|
|
Current |
140mA@5V supply power |
|
Product details
