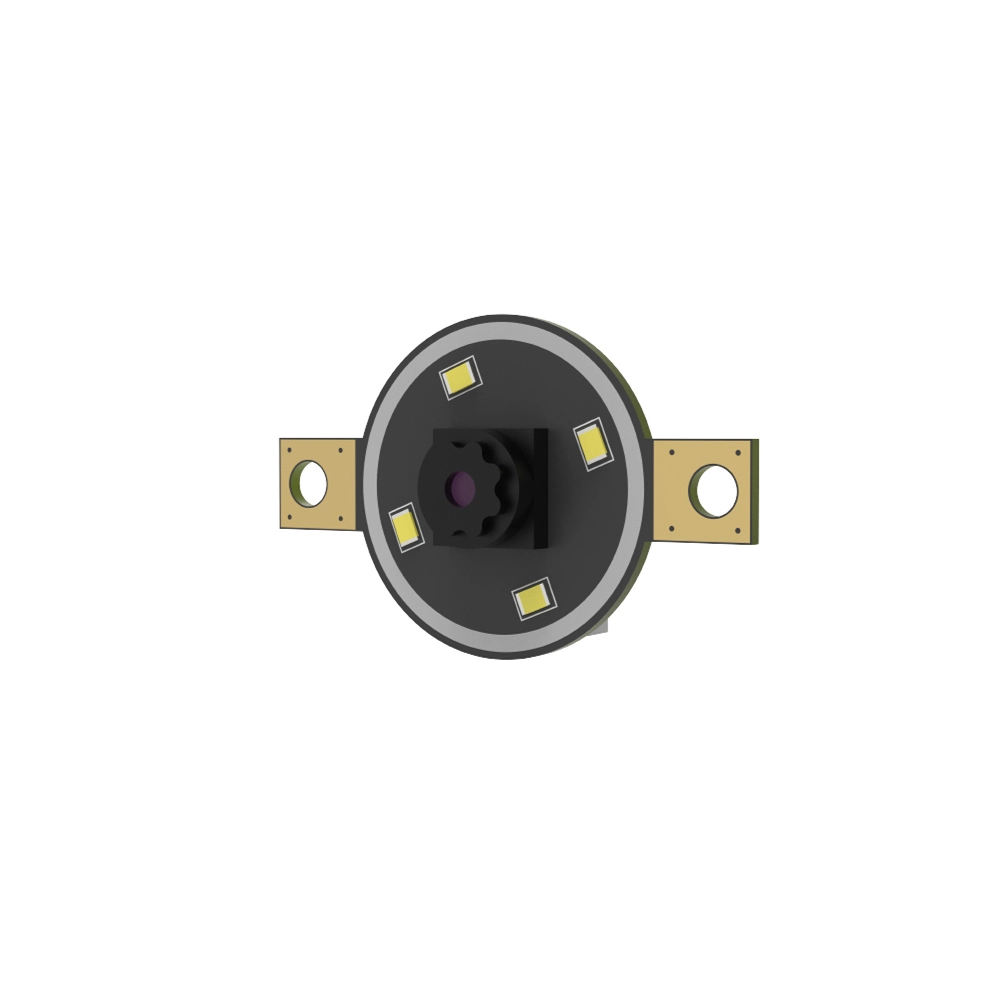

WCMI 2d Barcode Scan Engine Embedded Elevator Control Barcode Scanner Module Forelevator
Model: EM1831
Size: External diameter 21mm±0.1mm,
height 8.7mm±0.2mm (Including connector)
Color: black
Material Science: PC+ABC
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Product description
● Ultra-thin, ultra-small space preferred.
●The 4th Generation I-SUBPIXEL algorithm, easily and quickly scan various barcodes.
● White LED illumination easily read paper barcodes.
● Applicable to all kinds of elevator controller products.
● Support Linux, Android, Windows and other systems.
Product parameters
|
Model |
EM1831 |
|
|
Scan Code Performance |
Sensor |
640 X 480 CMOS@30fps |
|
View Angle |
Horizontal 70°, Vertical 55° |
|
|
Decoding Capability |
Default Open: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrix |
|
|
Default Close: Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey、RSS-14、RSS-Expand、RSS-Limited |
||
|
Depth of Field |
EAN-13: 30 ~ 110mm（13mil） Code128: 30 ~ 120mm（15mil） Mobile ride code: 70 ~ 170mm (6 "screen phone) Wechat payment QR code: 40 ~ 280mm (6 "screen phone) |
|
|
Scan Angle |
Rotation: 360°, Pitch: ±60°, Deflection: ±50° |
|
|
Scan Mode |
Induction mode, Continuous mode |
|
|
Precisions |
1D ≥ 5mil / 2D ≥ 10mil |
|
|
Symbol Contrast |
≥ 25% |
|
|
Scan Code Feedback |
Light indication, Serial output |
|
|
Physical Parameters |
Weight |
3g |
|
Dimensions |
External diameter 21mm±0.1mm, height 8.7mm±0.2mm (Including connector) |
|
|
Interface |
TTL |
|
|
Voltage |
DC +3.3V (±5%) |
|
|
Current |
＜120mA |
|
|
Environmental Parameter |
Shock |
5~200Hz, 10Grms, 3axes, 1.5Hr |
