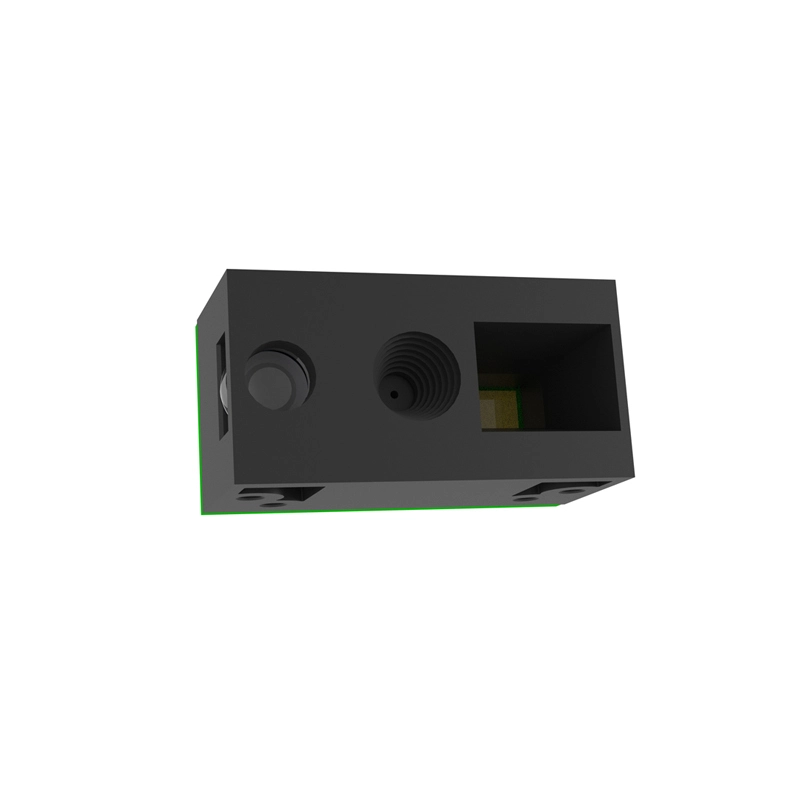

WCMI QR Barcode Reader MINI Barcode Scanner Module QL3301 OEM & ODM | MCMI
Model: QL3301
Size: 21.5mm * 11.00mm * 12.20mm
Color: black
Material Science: PC+ABC
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Wired Handheld barcode scanner-QL3301
Product description
● Manual mode, continuous mode, induction mode, command trigger mode.
● Barcode minimum precisions-4mil.
● Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.
● Can withstand a drop of 1.2m and work well in dark environment.
● Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.
Ultimate cost performance ratio
Advanced the 4th generation I-SUBPIXEL algorithm, easy and high-speed reading of various barcodes.
Product parameters
| Model | QL3301 | |
| Scan Code Performance |
Sensor | 640 X 480 CMOS |
| Light Source | Fill Light: White 6500K LED / Aiming Light: Red LED | |
| View Angle | Horizontal 32°, Vertical 24° | |
| Decoding Capability |
2D:QRCode(Mode1,Mode2), MicroQR, Data Matrix, PDF417, MicroPDF417, Aztec, HanXin, Maxicode | |
|
1D:Code128, Code39, Code93, EAN13, EAN8, UPC_E(E0,E1), ISBN13, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, RSS14(GS1 Databar), RSS Limited(GS1 Databar Limited), RSS Expanded(GS1 Databar Expanded), RSS14 Stack(GS1 Databar Stack), RSS Expanded(GS1 Databar Expanded Stack), Codebar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K |
||
| Cmpound Code: GS1 Composite | ||
| Depth of Field | EAN-13: 60~250 mm（13mil） Code128: 50~340 mm （15mil ） QR Code: 40~200 mm (15mil) |
|
| Scan Angle | Rotation: 360°, Pitch: ±60°, Deflection: ±60° | |
| Precisions | 1D ≥ 4mil / 2D ≥ 10mil | |
| Symbol Contrast | ≥ 10% | |
| Physical Parameters |
Weight | <10g |
| Dimensions | 21.5mm x 11.00mm x 12.20mm | |
| Interface | TTL-UART, USB-KBW/POS/VCP | |
| Voltage | +3.3V DC ±5% | |
| Current | Working ≤ 165mA; Sleeping ≤ 1mA | |
