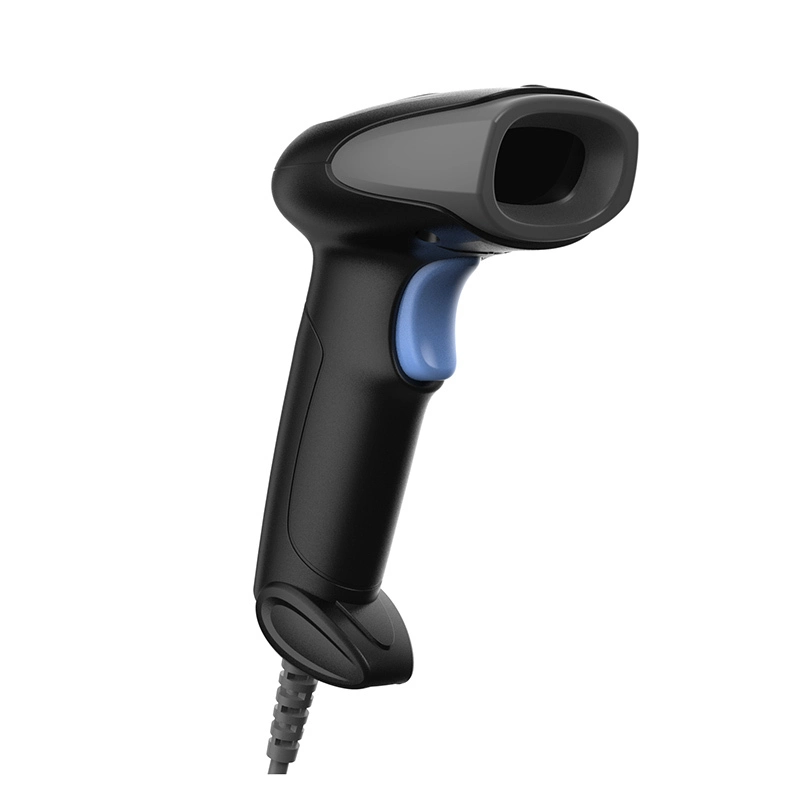

MCMI Bar Code Scanner Reader CCD 1D/2D Wired Handheld Barcode Scanner for Restaurants Supermarkets-SD5330
Model: SD5330
Size: 106.9mm * 65.00mm * 151.44mm
Color: black
Material Science: ABS
Delivery time: According to customized requirements
transaction mode: T/T, L/C, Credit Card, PayPal
Download
Wired Handheld Barcode Scanner-SD5330
Multiple scanning modes
● High cost–performance ratio.
● Advanced the 4th generation I-SUBPIXEL algorithm, easy and high-speed reading of various barcodes.
Multiple Scanning Modes
● Manual mode, continuous mode, induction mode, command trigger mode.
● Barcode minimum precisions--4mil.
● Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.
● Can withstand a drop of 1.2m and work well in dark environment.
● Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.
Product parameters
| Model | SD5321 | SD5330 | SD5331 | |
| Scan Code Performance |
CPU | 32bit Security Processor | —— | |
| Light Source | Fill Light: Red LED | Fill Light: White 6500K LED / Aiming Light: Red LED | ||
| Sensor | 1600 | 640 X 480 CMOS@30fps | 640 X 480 CMOS@120fps | |
| View Angle | Horizontal 42° | Horizontal 32°, Vertical 24° | Horizontal 37°, Vertical 28° | |
| Decoding Capability |
2D: QR Code, PDF417, DataMatrix (ECC200), Micro QR , Hanxin Code, Micro PDF417, Maxi Code, Aztec, Code 16K |
|||
| 1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, MSI-Plessey, Standard 2 of 5, Plessey, China Post, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) | ||||
| Depth of Field | Code39: 50 ~ 90mm(5mil) EAN13: 40 ~ 290mm(13mil) Code128: 30 ~ 410mm(20mil) |
Code39: 20 ~ 80mm(5mil) EAN13: 30 ~ 180 mm(13mil) CODE128: 20 ~ 230 mm(15mil) QR: 10 ~ 160mm(15mil) |
Code39: 30 ~ 130mm(5mil) EAN13: 30 ~ 350 mm(13mil) CODE128: 30 ~ 450mm(15mil) QR: 20 ~ 180mm(15mil) |
|
| Scan Angle | Rotation: 30°, Pitch: ±60°, Deflection: ±60° |
Rotation: 360°, Pitch: ±60°, Deflection: ±60° | ||
| Precisions | 1D ≥ 4mil | 1D ≥ 4mil / 2D ≥10mil | 1D ≥ 3mil / 2D ≥ 7mil | |
| Scan Mode | Continuous mode, Induction mode, Manual mode, Command triggered mode | |||
| Symbol Contrast | ≥ 20% | |||
| Physical Parameters |
Weight | < 350g | ||
| Dimensions | 106.9mm * 65.00mm * 151.44mm | |||
| Line Length | 1.6m | |||
| Interface | USB VCP / USB HID-KBW (Default) / USB HID-POS | |||
| Prompt Mode | LED prompt, Buzzer | |||
| Voltage | DC +5V (±5%) | |||
| Current | 200mA | |||
| Environmental Parameter |
Shock | 5~200Hz, 10Grms, 3axes, 1.5Hr | ||
| Fall | Designed to Withstand 1.2m Drops | |||
Product details
● Professional feedback within 8 hour
● Full capabilities to rely on
● Best possible prices for you
● Fast prototype in 1 week
● Fast delivery in 35-40 days
