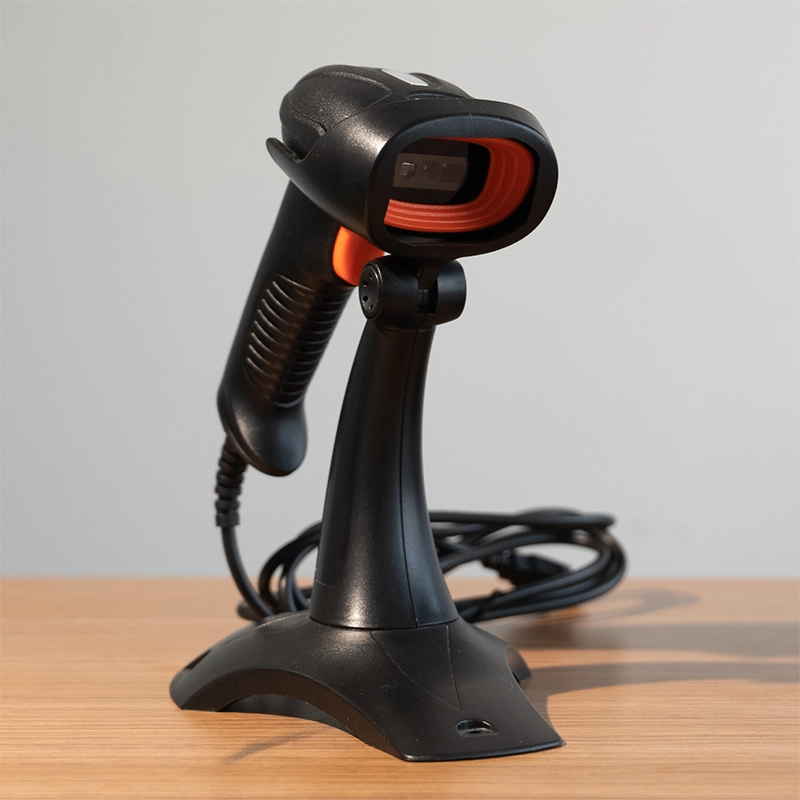

WCMI Wired Handheld QR Code barcode scanner for Restaurants, Supermarkets -SD5230
Model: SD5230
Size: 111.00mm * 67.00mm * 150.90mm
Color: black
Material Science: ABS
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Wired Handheld barcode scanner-SD5230
Multiple scanning modes
● Manual mode, continuous mode, induction mode, command trigger mode.
● Barcode minimum precisions-4mil.
● Support fuzzy or damaged 1D/2D barcode on paper and 1D/2D barcode on screen.
● Can withstand a drop of 1.2m and work well in dark environment.
● Applicable to restaurants, supermarkets, hotels, governments and other intelligent scenarios.
Ultimate cost performance ratio
Advanced the 4th generation I-SUBPIXEL algorithm, easy and high-speed reading of various barcodes.
Product parameters
| Model | SD5230 | |
| Scan Code Performance |
CPU | 32bit Security Processor |
| Light Source | Fill Light: White 6500K LED / Aiming Light: Red LED | |
| Sensor | 640 X 480 CMOS@30fps | |
| View Angle | Horizontal 32°, Vertical 24° | |
| Decoding Capability |
2D: QR Code, PDF417, DataMatrix (ECC200), Micro QR , Hanxin Code, Micro PDF417, Maxi Code, Aztec, Code 16K |
|
| 1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, MSI-Plessey, Standard 2 of 5, Plessey, China Post, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) | ||
| Depth of Field | Code39: 20 ~ 80mm(5mil) EAN13: 30 ~ 180mm(13mil) Code128: 20 ~ 230mm(15mil) QR: 10 ~ 160mm(15mil) |
|
| Scan Angle | Rotation: 360°, Pitch: ±60°, Deflection: ±60° | |
| Precisions | 1D ≥ 4mil / 2D ≥10mil | |
| Scan Mode | Continuous mode, Induction mode, Manual mode, Command triggered mode | |
| Symbol Contrast | ≥ 20% | |
| Physical Parameters |
Weight | < 350g |
| Dimensions | 111.00mm * 67.00mm * 150.90mm | |
| Line Length | 1.6m | |
| Interface | USB VCP / USB HID-KBW (Default) / USB HID-POS | |
| Prompt Mode | LED prompt, Buzzer | |
| Voltage | DC +5V (±5%) | |
| Current | 200mA | |
| Environmental Parameter |
Shock | 5~200Hz, 10Grms, 3axes, 1.5Hr |
| Fall | Designed to Withstand 1.2m Drops | |
