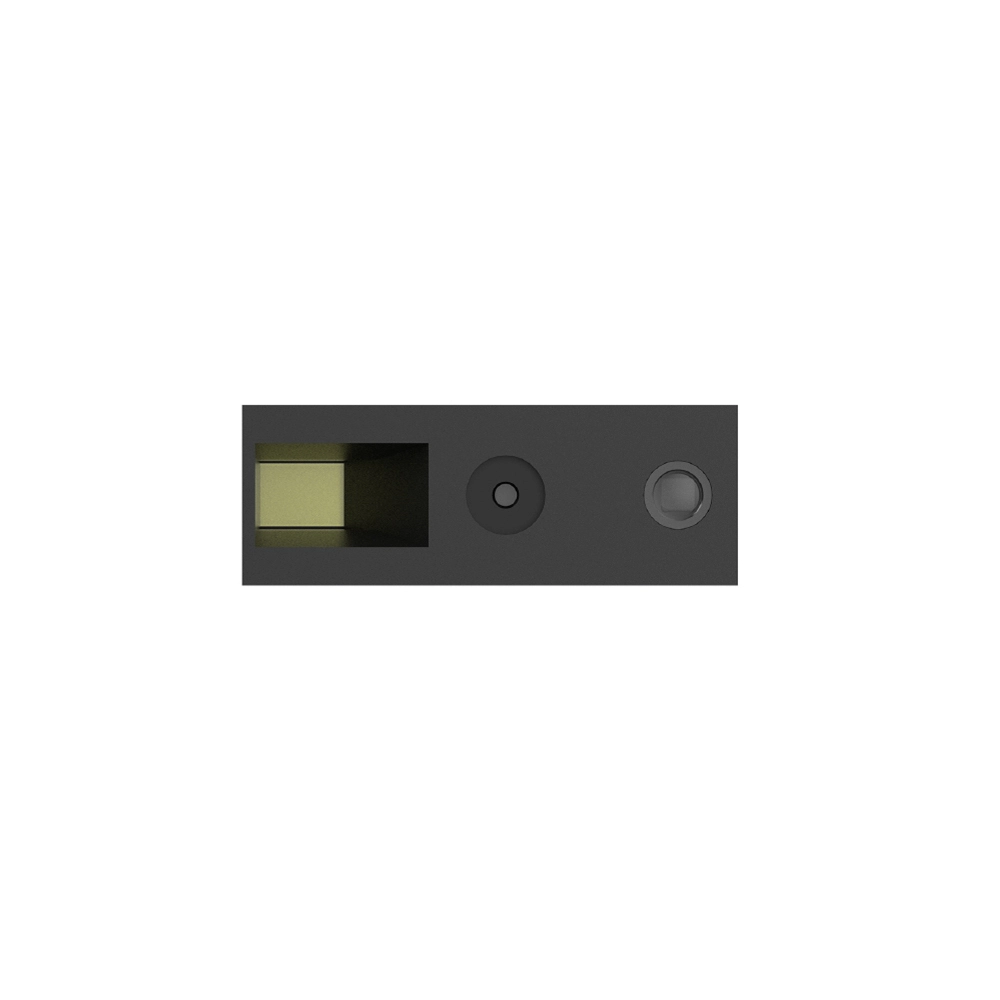

MCMI QR Code Scanner 2D Barcode Reader Module USB TTL
Model: SE4231
Size: 22mmL * 9.5mmW * 8mmH
Color: black
Material Science: PC+ABC
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Barcode Scanner Module -SE4231
Product description
● Mini size, high integration, excellent performance, flexibility and convenience.
● Strong product compatibility, can adapt to a variety of scenarios.
● Compact and lightweight design, easy to fit into scanning products.
● The 4th Generation I-SUBPIXEL algorithm.
● Fast screen barcode capture, whether in high brightness or low brightness screen.
● Smoothly decode damaged, distorted, dirty, fuzzy, colorful, reflective, wrinkled, incomplete, folded 1d or 2d barcode.
● Suitable for such as tablet phablet, counting machine, data collector, PDA, ring scanner, handheld scanner and so on.
Product parameters
|
Model |
SE4231 |
|
|
Scan Code Performance |
Sensor |
640 X 480 CMOS@30fps |
|
Light Source |
Fill Light: White 6500K LED / Aiming Light: Red LED |
|
|
View Angle |
Horizontal 32°, Vertical 24° |
|
|
Decoding Capability |
2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Hanxin Code、Maxicode、Micro QR、Micro PDF417、Code16K |
|
|
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、GS1Databar (RSS-Expand, RSS-Limited, RSS-14) |
||
|
Depth of Field |
Code39: 45 ~ 120mm （5mil） EAN13: 45 ~ 300 mm（13mil） CODE128: 50 ~ 390 mm（15mil） QR: 30 ~ 230mm（15mil） |
|
|
Scan Angle |
Rotation: 360°, Pitch: ±60°, Deflection: ±60° |
|
|
Scan Mode |
Continuous mode, Induction mode, Manual mode, Command-triggered mode |
|
|
Precisions |
1D ≥ 4mil / 2D ≥ 10mil |
|
|
Symbol Contrast |
≥ 15% |
|
|
Physical Parameters |
Weight |
< 5g |
|
Dimensions |
22mmL * 9.5mmW * 8mmH |
|
|
Interface |
USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 |
|
|
Prompt Mode |
LED prompt and buzzer (External connection available) |
|
|
Voltage |
DC +3.3V (±5%) |
|
|
Current |
working: 170mA; Sleeping: 800uA |
|
Product details
● Professional feedback within 8 hour
● Full capabilities to rely on
● Best possible prices for you
● Fast prototype in 1 week
● Fast delivery in 35-40 days
