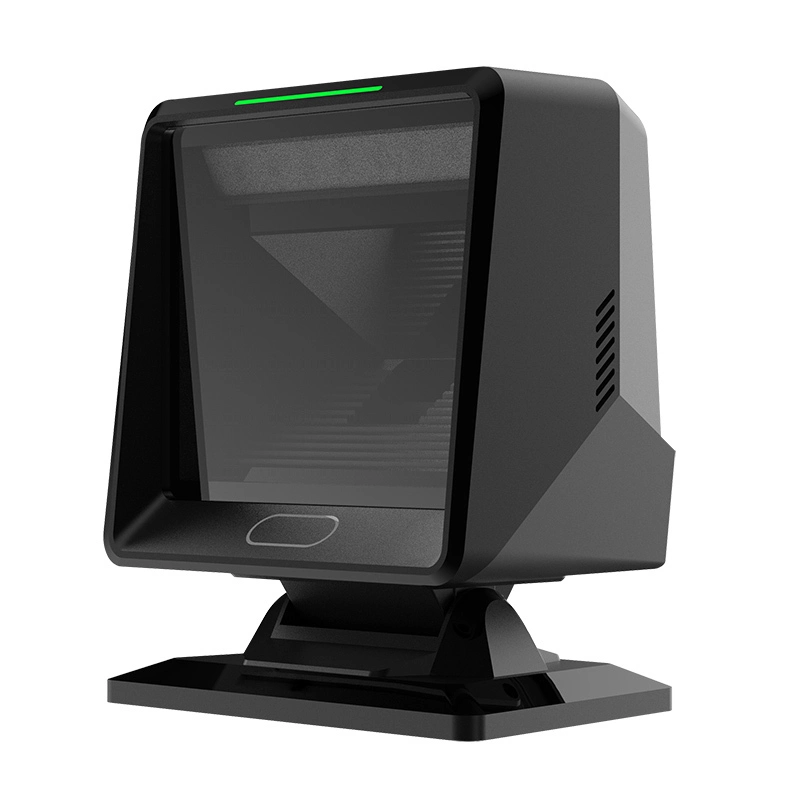

WCMI QR Code Scanner Desktop USB Large Viewing Window for Supermarket, Catering
Model: SD5437
Size: 133.57mm * 145.60mm * 100.28mm (Excluding base)
Color: black
Material Science: ABS
Delivery time: According to customized requirements
Transaction mode: T/T, L/C, Credit Card, PayPal
Download
Desktop Barcode Scanner-SD5437
Product description
● High performance desktop high speed platform scanner, optional base seat, suitable for various occasions.
● The motion tolerance is as high as 4.5m/s.
● Larger scanning window, can easily read the fast passing bar code.
● Further depth of field.
● Widely used in supermarket, catering, cinema, pharmacy and other industries.
Product parameters
| Model | SD5437 | |
| Scan Code Performance |
Sensor | 800 X 500 CMOS@120fps |
| Light Source | Red LED | |
| View Angle | Horizontal 48°, Vertical 32° | |
| Decoding Capability |
2D: QR Code, PDF417, DataMatrix (ECC200), Micro QR , Hanxin Code, Micro PDF417, Maxi Code, Aztec, Code49 | |
| 1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar , Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey , RSS-14, RSS-Expand, RSS-Limited, Standard 2 of 5, Code 16K, Plessey, ChinaPost | ||
| Depth of Field | Code39: 0 ~ 60mm(5mil) EAN13: 0 ~ 200mm(13mil) CODE128: 0 ~ 350mm(15mil) QR: 0 ~ 540mm(55mil) |
|
| Scan Angle | Rotation: 360°, Pitch: ±60°, Deflection: ±60° | |
| Scan Mode | Induction mode | |
| Precisions | 1D ≥ 4mil / 2D ≥ 10mil | |
| Symbol Contrast | ≥15% | |
| Motion Tolerance | EAN13 Paper Code: ≥ 4.5m/s | |
| Physical Parameters |
Weight | < 450g (Excluding base), < 550g (Including base) |
| Dimensions | 133.57mm * 145.60mm * 100.28mm (Excluding base) 172.23mm * 145.6mm * 100.28mm (Including base) |
|
| Interface | USB VCP / USB HID-KBW (Default) / USB HID-POS | |
| Prompt Mode | LED prompt, Buzzer | |
| Voltage | DC +5V (±5%) | |
| Current | 500mA | |
| Environmental Parameter |
Shock | 5~200Hz, 10Grms, 3axes, 1.5Hr |
| Fall | Designed to Withstand 1.2m Drops | |
| Accessories | Optional Accessories |
Base |
Product details
● Professional feedback within 8 hour
● Full capabilities to rely on
● Best possible prices for you
● Fast prototype in 1 week
● Fast delivery in 35-40 days
